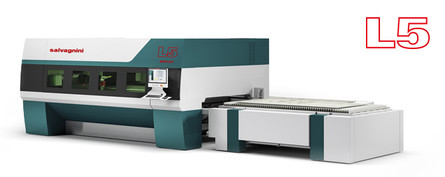

L5 - high dynamic fiber laser
- MM
- INCHES
Technical data L5 (measurements in mm)
| Machine data | L5-30 | L5-40 |
| Working range | ||
| X Y worktable | 3048x1524 | 4064x1524 |
| Z axis stroke | 100 | 100 |
| Accuracy1: | ||
| Position accuracy Pa | 0.08 | |
| Average position range Ps | 0.03 | |
| Fiber laser source | 2000 W | 3000 W | 4000 W | 6000 W | 8000 W | 10000 W |
| Cutting capacity (thicknesses)2 | ||||||
| Steel (S185JR,S235JR, RAEX 250 C LASER) | 0.5-15 | 0.5-20 | 0.5-20 | 0.5-25 | 0.5-25 | 0.5-25 |
| Stainless steel (AISI 304, X5CrNi18-10 1.4301) | 0.5-10 | 0.5-12 | 0.5-15 | 0.5-20 | 0.5-25 | 0.5-30 |
| Aluminum (Al 99.5 EN AW 1050A) | 0.5-8 | 0.5-10 | 0.5-15 | 0.5-20 | 0.5-25 | 0.5-30 |
| Copper (Cu-ETP CW004A H040 EN1652) | 0.5-5 | 0.5-8 | 0.5-8 | 0.5-8 | 0.5-10 | 0.5-10 |
| Brass (CuZn37 CW508L H055 EN1652) | 0.5-5 | 0.5-6 | 0.5-8 | 0.5-8 | 0.5-10 | 0.5-10 |
| Consumption | ||||||
| Maximum power consumption (kW)3 | 16 kW | 18 kW | 21 kW | 28 kW | 34 kW | 42 kW |
| Average power consumption (kW)4 | 11 kW | 12 kW | 13 kW | 16 kW | 20 kW | 24 kW |
- Measure calculated following the norm VDI3441 on the maximum length of the axes.
- The quality of cuts on limit thicknesses will depend on the geometries required, the quality of the material and the operating conditions of the system. At the limit values, the cut may have burrs on the lower edge.
- Maximum consumption calculated on a system with standard configuration when cutting 3 reference sheets of mild steel with a thickness of 0.8-6 mm.
- Average consumption calculated on a system with standard configuration when cutting 3 reference sheets of mild steel with a thickness of 0.8-6 mm.
Salvagnini reserves the right to modify this data without warning.
Technical data L5 (measurements in inches)
| Machine data | L5-30 | L5-40 |
| Working range | ||
| X Y worktable | 120x60 | 160x60 |
| Z axis stroke | 3.9 | 3.9 |
| Accuracy1: | ||
| Position accuracy Pa | 0.003 | |
| Average position range Ps | 0.001 | |
| Fiber laser source | 2000 W | 3000 W | 4000 W | 6000 W | 8000 W | 10000 W |
| Cutting capacity (thicknesses)2 | ||||||
| Steel (S185JR,S235JR, RAEX 250 C LASER) | 0.591 | 0.787 | 0.787 | 1 | 1 | 1 |
| Stainless steel (AISI 304, X5CrNi18-10 1.4301) | 0.394 | 0.472 | 0.591 | 0.787 | 1 | 1.181 |
| Aluminum (Al 99.5 EN AW 1050A) | 0.315 | 0.394 | 0.591 | 0.787 | 1 | 1.181 |
| Copper (Cu-ETP CW004A H040 EN1652) | 0.197 | 0.315 | 0.315 | 0.315 | 0.394 | 0.394 |
| Brass (CuZn37 CW508L H055 EN1652) | 0.197 | 0.236 | 0.315 | 0.315 | 0.394 | 0.394 |
| Consumption | ||||||
| Maximum power consumption (kW)3 | 16 kW | 18 kW | 21 kW | 28 kW | 34 kW | 42 kW |
| Average power consumption (kW)4 | 11 kW | 12 kW | 13 kW | 16 kW | 20 kW | 24 kW |
- Measure calculated following the norm VDI3441 on the maximum length of the axes.
- The quality of cuts on limit thicknesses will depend on the geometries required, the quality of the material and the operating conditions of the system. At the limit values, the cut may have burrs on the lower edge.
- Maximum consumption calculated on a system with standard configuration when cutting 3 reference sheets of mild steel with a thickness of 1/32"- 15/64" gage thickness.
- Average consumption calculated on a system with standard configuration when cutting 3 reference sheets of mild steel with a thickness of 1/32"- 15/64" gage thickness.
Salvagnini reserves the right to modify this data without warning.
